Liquid Ammonia Filling Pump

Zero-Leakage Pumping for Ammonia Bunkering

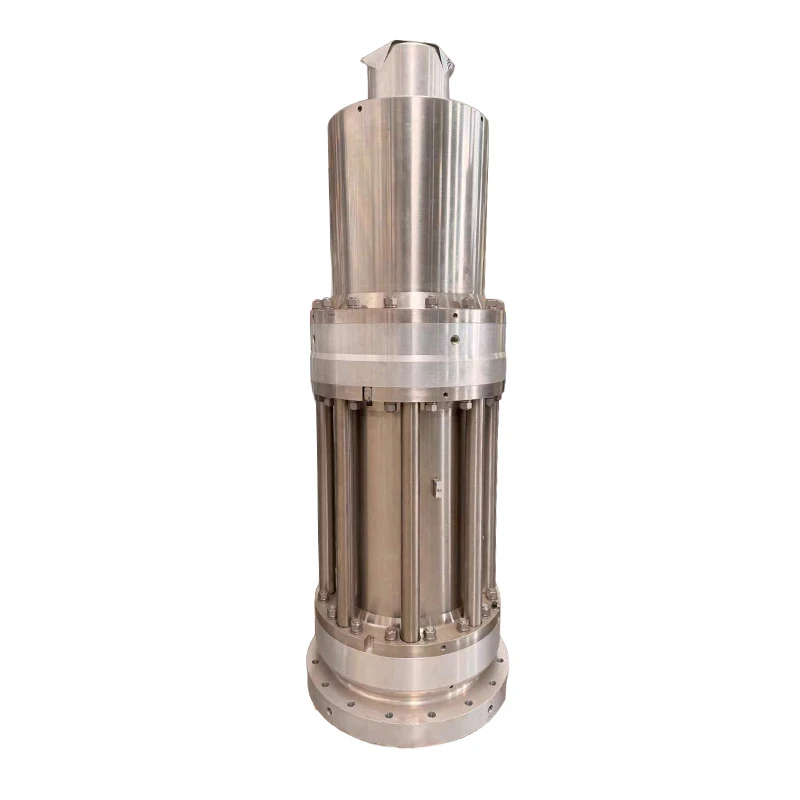

The liquid ammonia filling pump is a magnetic-drive centrifugal pump designed for ammonia fuel bunkering and transfer operations. It serves ammonia fuel supply stations, ammonia-powered vessel fuel receiving systems, and liquid ammonia trailer filling facilities. As a key piece of equipment in the ammonia fuel supply chain, the pump is designed for safe, reliable, zero-leakage operation when handling toxic and flammable liquid ammonia.

The pump uses a permanent magnetic coupling to transmit torque from the motor to the impeller without a physical shaft penetration, eliminating the dynamic seal that would otherwise be a potential leak path. This is essential for ammonia service where even small leaks present significant safety and environmental risks. All wetted components are manufactured from corrosion-resistant stainless steel or alloy materials specifically selected for ammonia compatibility, and the bearings and sealing components are validated for ammonia service.

Flow rates range from 0.5 m³/h up to 2,500 m³/h, with heads up to 2,600 meters. The pump can be supplied with a variable frequency drive for precise flow control, matching the bunkering rate requirements of different vessels. The compact design is suitable for installation at bunkering stations and other space-constrained facilities.

Marine Certification and Safety Compliance



The liquid ammonia filling pump holds CCS type approval, confirming compliance with the safety standards required for marine clean-fuel bunkering facilities. The zero-leakage design meets the strict containment requirements for ammonia fuel operations, addressing both safety and environmental concerns.

one-stop solution

professional team

high quality

Each pump undergoes 100% performance testing before shipment. Third-party inspection and witness testing can be arranged. Lead time from technical approval to delivery is typically 32 weeks. After delivery, installation guidance, commissioning support, spare parts supply, and operator training are available as specified in the contract.
